OEM/ODM Factory Portable Solar Panels For Home Use - 435-455W P-TYPE 72 HALF CELL MODULE – ALife Detail:
Product Description
Multi Busbar Technology
Better light trapping and current collection to improve module power output and reliability.
Reduced Hot Spot Loss
Optimized electrical design and lower operating current for reduced hot spot loss and better temperature coefficient.
PID Resistance
Excellent Anti-PID performance guarantee via optimized mass-production process and materials control.
Durability Against Extreme EnvironmentalConditions
High salt mist and ammonia resistance.
Enhanced Mechanical Load
Certified to withstand: wind load (2400 Pascal) and snow load (5400 Pascal).
Certificates
LINEAR PERFORMANCE WARRANTY
12 Year Product Warranty
25 Year Linear Power Warranty
0.55% Annual Degradation Over 25 years
Engineering Drawings

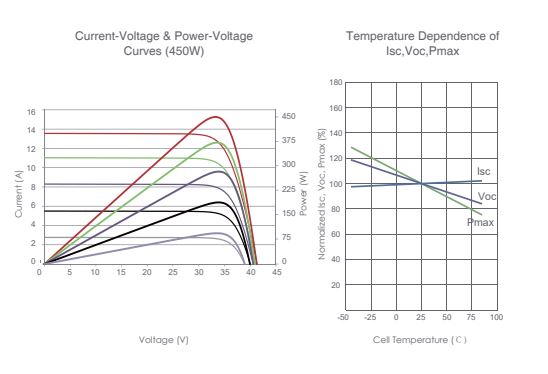

Electrical Performance & Temperature Dependence
Product Spec
| Packaging Configuration | |
| ( Two pallets = One stack ) | |
| 31pcs/pallets, 62pcs/stack, 682pcs/40′HQ Container | |
| Mechanical Characteristics | |
| Cell Type | Mono PERC 166×166mm |
| No. of cells | 144 (6×24) |
| Dimensions | 2096×1039×35mm (82.52×40.91×1.38 inch) |
| Weight | 25.1kg (55.34 lbs) |
| Front Glass | 3.2mm,Anti-Reflection Coating, High Transmission, Low Iron, Tempered Glass |
| Frame | Anodized Aluminium Alloy |
| Junction Box | IP68 Rated |
| Output Cables | TUV 1×4.0mm2 (+): 290mm , (-): 145mm or Customized Length |
| SPECIFICATIONS | ||||||||||
| Module Type | JKM435M-72HLM JKM435M-72HLM-V |
JKM440M-72HLM JKM440M-72HLM-V |
JKM445M-72HLM JKM445M-72HLM-V |
JKM450M-72HLM JKM450M-72HLM-V |
JKM455M-72HLM JKM455M-72HLM-V |
|||||
| STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | |
| Maximum Power (Pmax) | 435Wp | 324Wp | 440Wp | 327Wp | 445Wp | 331Wp | 450Wp | 335Wp | 455Wp | 339Wp |
| Maximum Power Voltage (Vmp) | 40.77V | 37.76V | 40.97V | 37.89V | 41.17V | 38.10V | 41.37V | 38.31V | 41.56V | 38.47V |
| Maximum Power Current (Imp) | 10.67A | 8.57A | 10.74A | 8.64A | 10.81A | 8.69A | 10.88A | 8.74A | 10.95A | 8.80A |
| Open-circuit Voltage (Voc) | 48.67V | 45.84V | 48.87V | 46.03V | 49.07V | 46.22V | 49.27V | 46.41V | 49.46V | 46.59V |
| Short-circuit Current (Isc) | 11.32A | 9.14A | 11.39A | 9.20A | 11.46A | 9.26A | 11.53A | 9.31A | 11.60A | 9.37A |
| Module Efficiency STC (%) | 19.97% | 20.20% | 20.43% | 20.66% | 20.89% | |||||
| Operating Temperature(℃) | 40℃~+85℃ | |||||||||
| Maximum System Voltage | 1000/1500VDC (IEC) | |||||||||
| Maximum Series Fuse Rating | 20A | |||||||||
| Power Tolerance | 0~+3% | |||||||||
| Temperature Coefficients of Pmax | -0.35%/℃ | |||||||||
| Temperature Coefficients of Voc | -0.28%/℃ | |||||||||
| Temperature Coefficients of Isc | 0.048%/℃ | |||||||||
| Nominal Operating Cell Temperature (NOCT) | 45±2℃ | |||||||||
Environmental
STC: Irradiance 1000W/m2 AM=1.5 Cell Temperature 25°C AM=1.5
NOCT: Irradiance 800W/m2 Ambient Temperature 20°C AM=1.5 Wind Speed 1m/s
